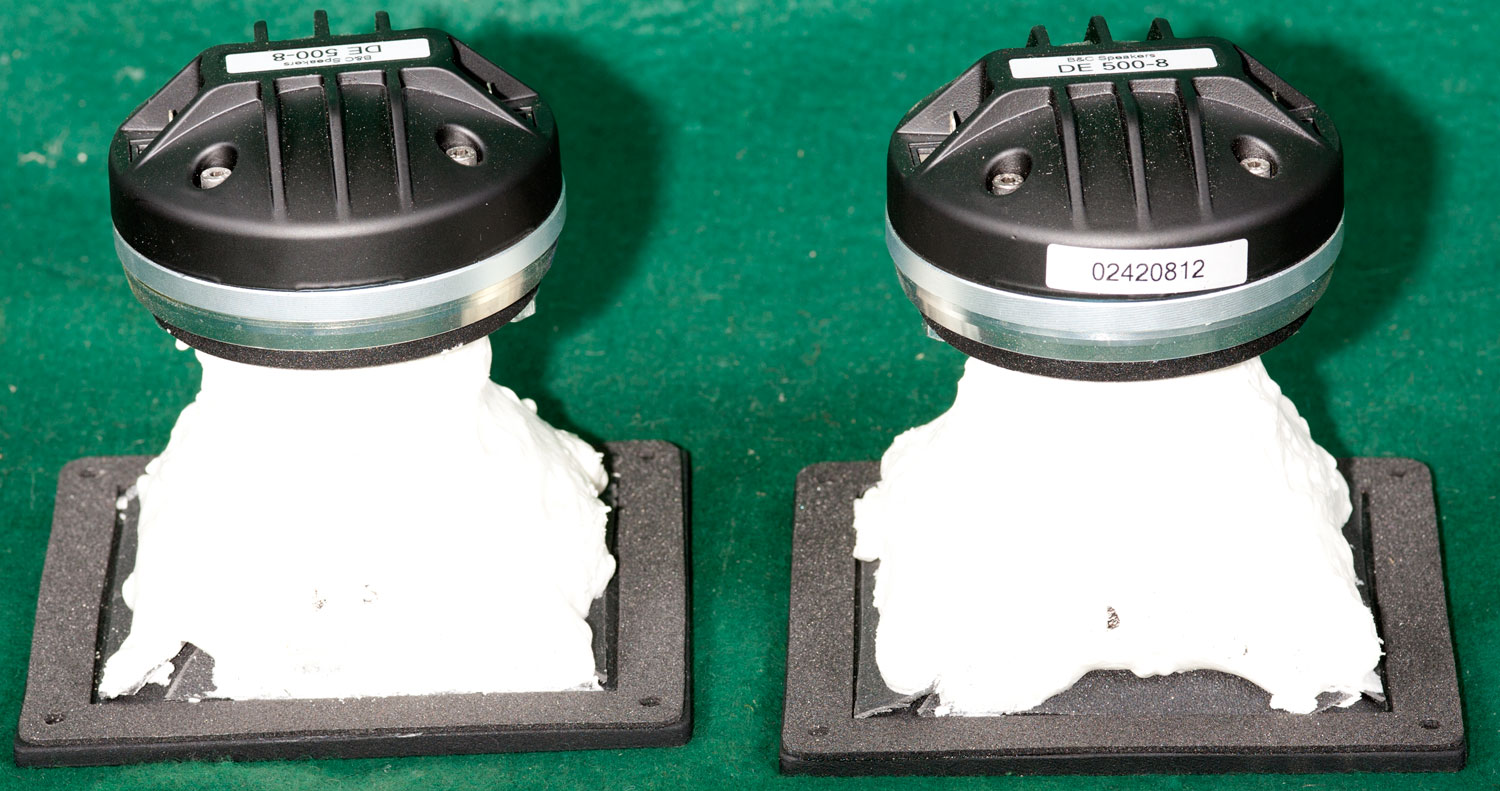

B&C Speakers A Pair Model DE500 Compression Drivers With Horns
| 1" Compression driver with titanium diaphram and neodymium magnet. 8ohms. With B&C |
| ME15 1" cast aluminum exponential horns, foamed to reduce ringing. The pair. Used only a |
| couple of days. (Replaced in mysystem by the TAD ET-703.) $250/pair. |
According to US Speaker, LLC:
|
Throat Diameter |
1" |
|
Impedance |
8 ohms
|
|
RMS
Power Rating |
50
Watts |
| Program Power | 100 Watts |
|
Frequency Response |
1.0kHz
- 18kHz |
| Recommended Crossover | 1.5kHz |
|
Sensitivity (1W/1m) |
107dB |
|
Voice Coil Diameter |
1.7" / 44mm |
| Winding Material | Aluminum |
| Inductance | 0.11mH |
| Diaphragm Material | Titanium |
| Flux Density | 1.9T |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
4" / 102mm |
| Mounting Holes | (2)M6 holes on 180°- 3" Dia. |
| Depth | 2.1" / 54mm |
| Net Weight | 3.3 lbs./ 1.5 kg. |
And, the horn, according to Parts Express Inc:

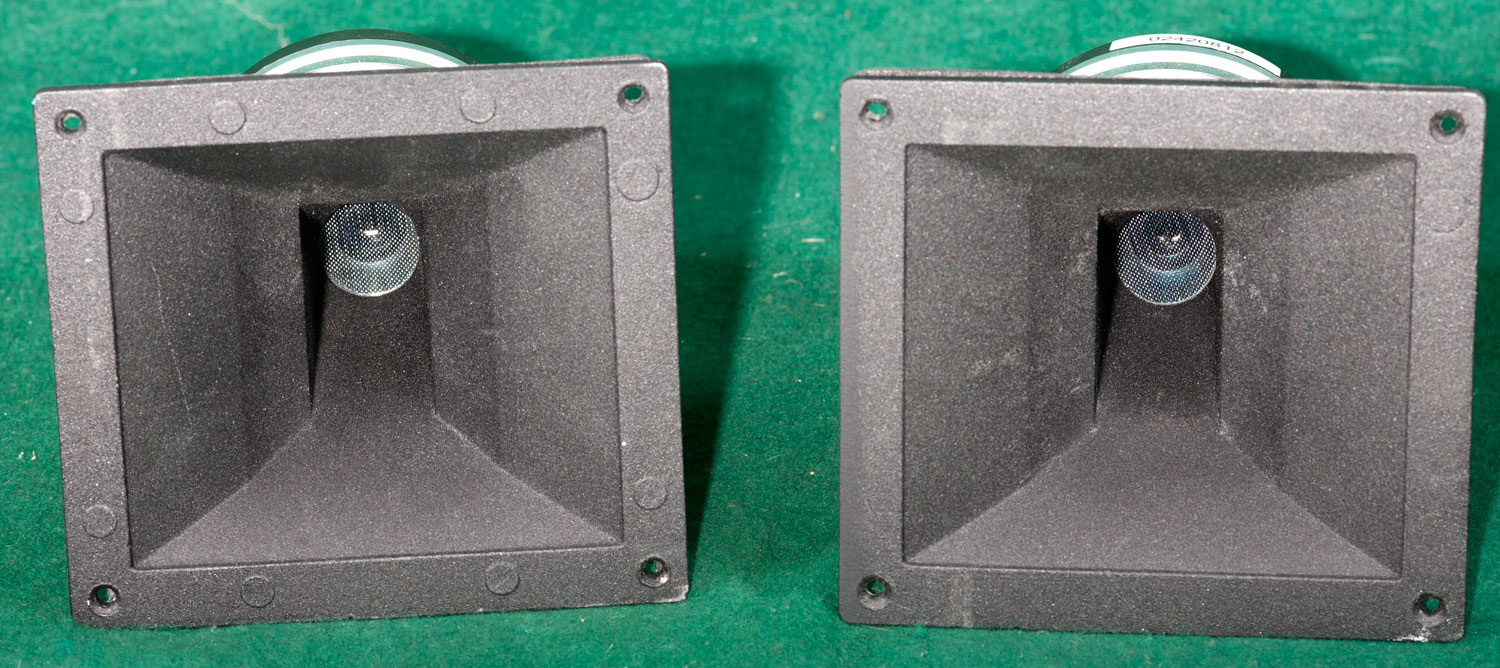

| 1" exponential cast aluminum horn, very good loading down to 1.5 kHz. Specifications: *Nominal dispersion: 90°H x 60°V *Minimum frequency: 1,500 Hz *Throat diameter: 1" *Dimensions: 5.4"H x 5.9"W x 3.5"D *Cutout dimensions: 4.3"H x 4.7"W *Mounting type: Standard 2 bolt. |
|
