Mauser 98 and Winchester Model 70-type Safeties

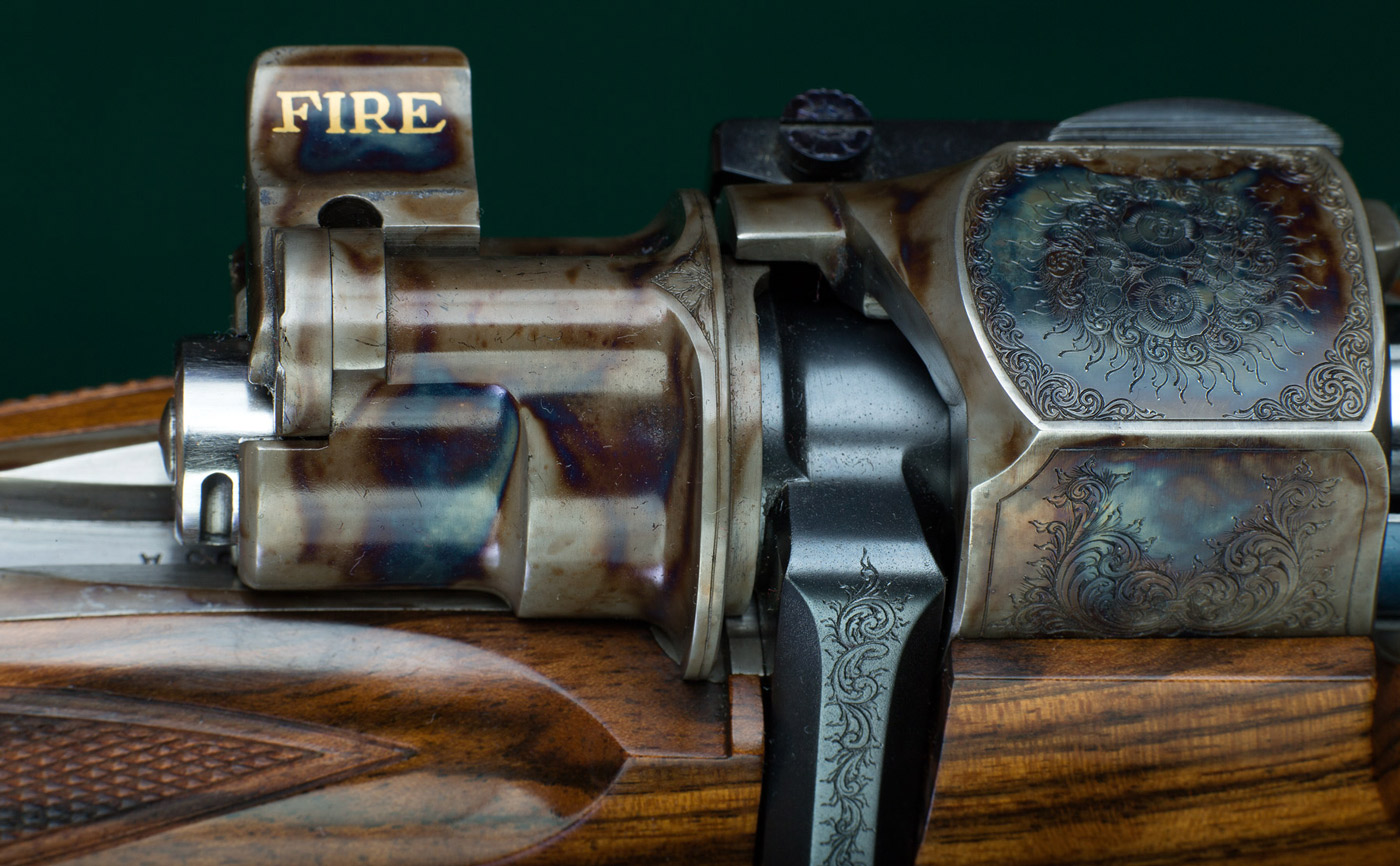

Mauser Safety - A small lever mounted to the cocking piece of a Mauser 98 action (and its copies such as the Springfield 1903), rotating on a longitudinal axis from left (Fire), up to the top (Safe, but allowing bolt movement), and over to the right (Bolt and firing pin locked Safe). While commendable for locking the firing pin instead of just the trigger, its up-and-over arc of operation requires a scope to be mounted awkwardly high. Paul Mauser is not to be blamed; when his safety was developed, telescopic sights were in such infancy as not to be worthy of mainstream consideration.

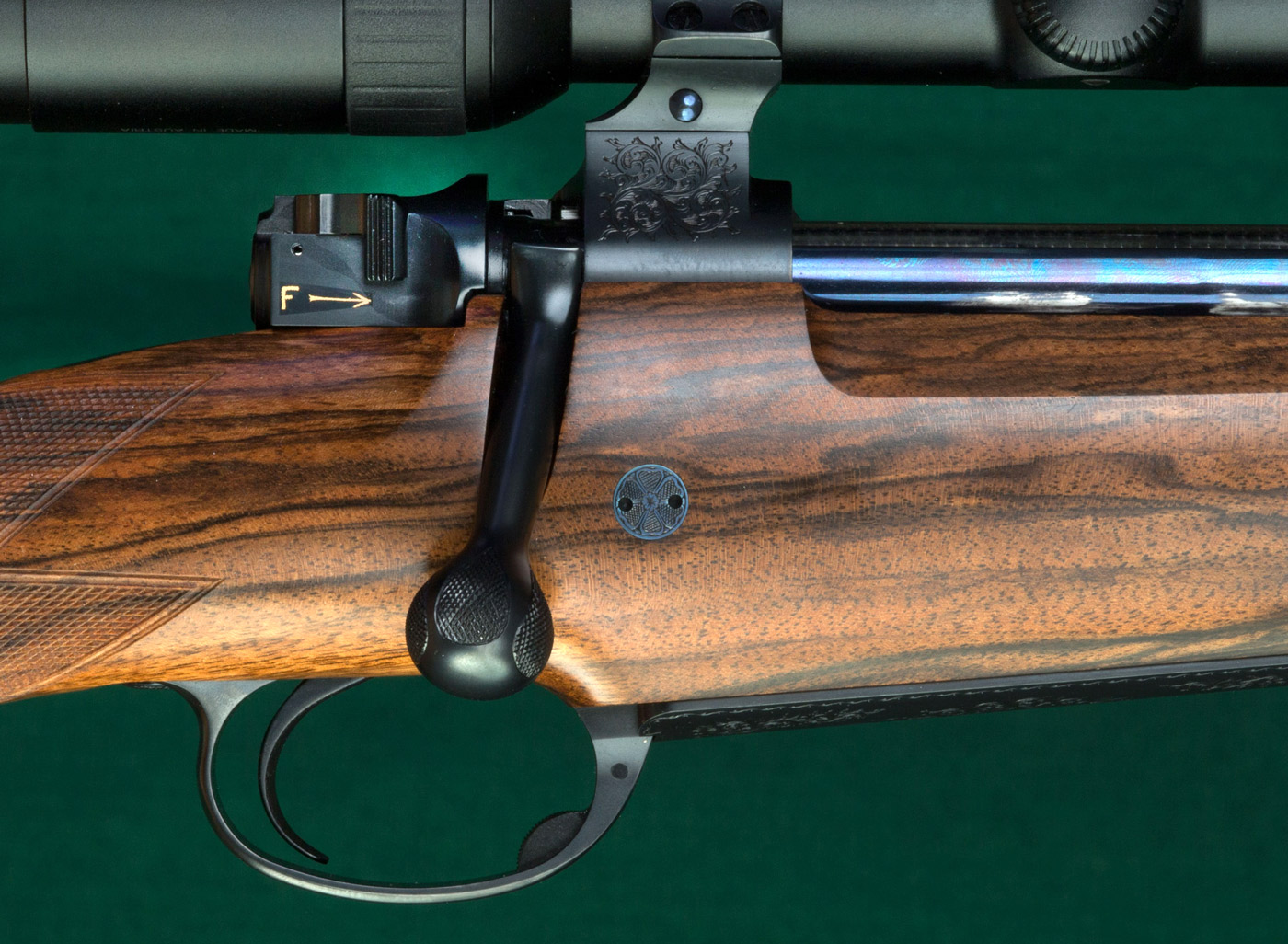

Model 70-type safety on a custom rifle. Since its inception, Winchester's concept has been widely adopted by other makers.

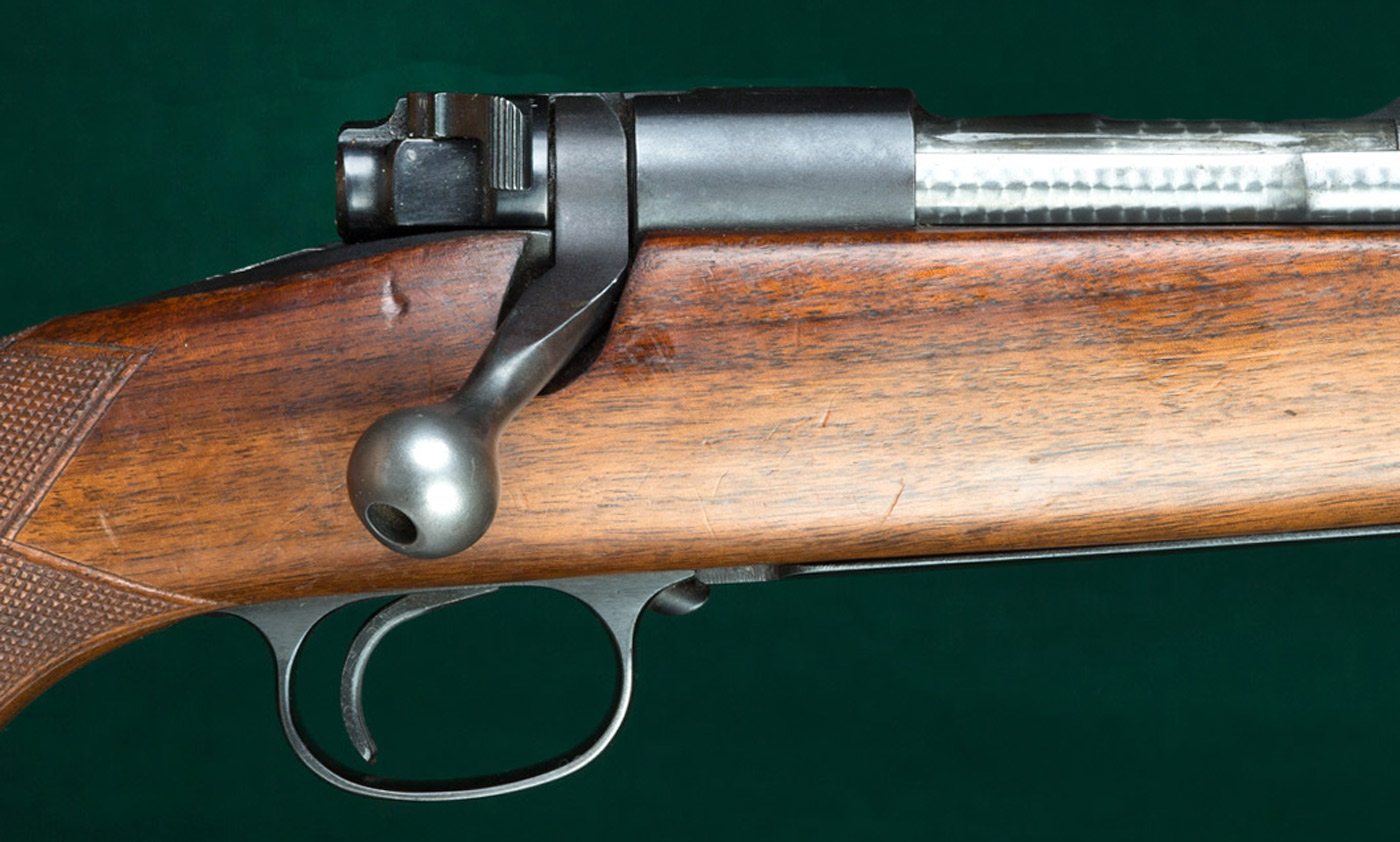

Model 70-type Safety - A small lever mounted to the cocking piece of a Winchester Model 70 rifle, rotating fore and aft on a vertical axis from front (Fire), halfway back (Safe, but allowing bolt movement), and fully back (Bolt and firing pin locked Safe). While, like the Mauser, commendable for locking the firing pin instead of just the trigger, its fore and aft movement is both easier to operate and it allows lower mounting of telescopic sights, reducing parallax between the line of sight and the line of the bore and increasing the range of distances for which the scope may be reliably sighted-in.
